Batch 01 · limited run
The arm inside the cell.

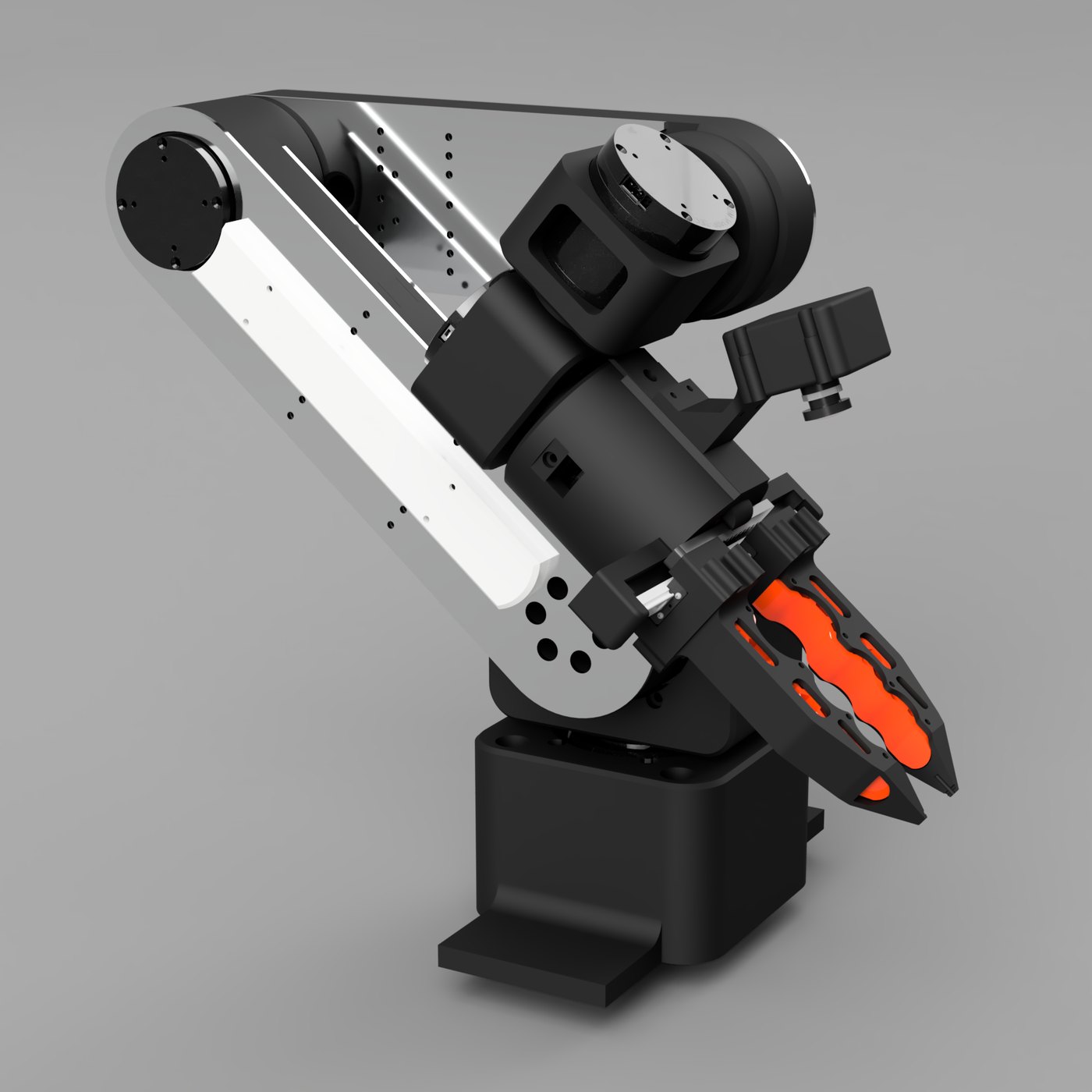

The S1A is the arm we build the S1 cell from. For Batch 01 we are building a limited number of leader–follower kits for research and development teams: robotics and ML groups, labs, and companies building teleoperation and data-collection rigs. Built to order in Germany, shipped worldwide.
S1 Kit One S1A follower arm, one S1L leader arm, camera included
€3,990Net · DE €4,748 incl. 19 % VAT · EU B2B with VAT ID: no VAT · outside EU: no VAT, duties on delivery · plus shipping (DE €69 · EU €119 · world €269) · approx. 4–6 weeks
The pair we teach the S1 cell with. Move the leader, the follower follows; record with the camera; train with LeRobot or your own stack. Plug into a laptop and go.
The software is open source: a native LeRobot plugin for teleoperation, recording and training, on GitHub. The S1A grew out of our earlier all-printed AIRA arm; Batch 01 is the CNC-supported build.
- Axes
- 6 + gripper, Damiao CAN-bus motors
- Payload
- 4 kg
- Reach
- 700 mm
- Structure
- Printed PLA-CF links on a CNC-aluminium supported frame
- Camera
- Global-shutter wide-angle camera, included
- Leader

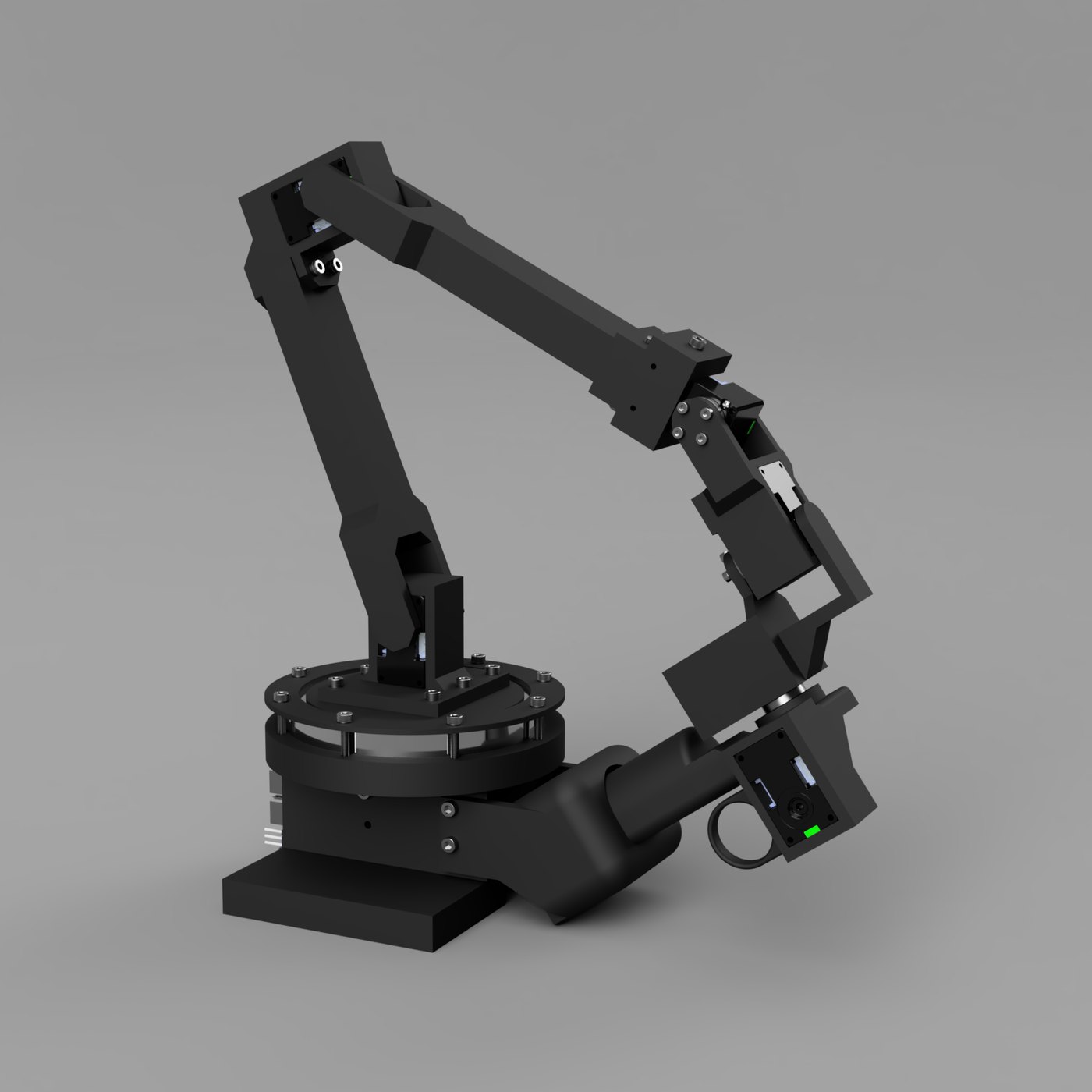

- S1L, very light, Dynamixel-based, high-precision joint feedback on every axis and the gripper
- Host
- macOS · Windows · Linux, USB
- Software
- Native LeRobot plugin: teleoperation, recording, training with ACT, Diffusion, π0, GR00T. Open source.
- Origin
- Designed and assembled in Germany
- In the box
- S1A arm with gripper and camera, S1L leader, power supply and cables, documentation
- Buying
- Card via Stripe, or quote + invoice with 14-day terms for institutions and purchase orders
Bimanual station: order two kits. Quantity at checkout.
Development hardware for labs and R&D teams. The S1A is partly completed machinery (unvollständige Maschine, Machinery Directive 2006/42/EC Annex II 1 B): it carries no CE marking as a machine and is supplied with a Declaration of Incorporation and assembly instructions. You are the integrator: risk assessment, guarding, emergency stop and conformity of the complete machine happen on your side. Business customers only (§ 14 BGB, no consumer sales) — sole traders, freelancers and one-person companies count as business customers: enter your trade name at checkout. Built to order, no returns of conforming goods; statutory defect rights apply. Terms of sale.
Questions or quotes.
Larger quantities, an invoice instead of the checkout, or a spec question: roberto@structis.ai. If you have a repetitive manual task rather than a lab, sheet 01 is for you.
